MESCO Stainless Steel Pipe
| Categories | Stainless Steel |
|---|---|
| Brand | MESCO Steel Wholesaler |
| Model | Stainless Steel Pipe |
| WhatsAPP/we chat | +86 15134565556 |
| mesco@mescogroup.com.cn | |
| FACE BOOK | MESCO STEEL |
| FOB port | tianjin port |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
| Download |  |
| Update Time | Apr 24,2025 |
Detail Information

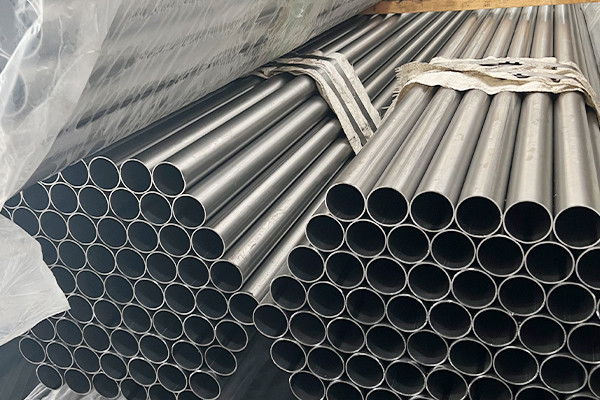

Stainless Steel Tube
· MESCO is a supplier to many globally renowned automotive enterprises, providing stainless steel perforated tubes for use as mufflers.
· It has extremely rich experience in the production of stainless steel tubes, and can deliver goods within 30 days for conventional sizes.
· It strictly controls the quality and will arrange the shipment only after inspection.
The base materials and weld seam of the tube undergo the solid solution treatment integrally. Exhaust steel tubes are produced in accordance with the APQP process. The outer diameter tolerance and inner weld residual height are strictly controlled to ensure no internal weld traps exist. Each piece is subjected to a 100% one-by-one pressure detection at 15 kg pressure for 15 seconds. The entire length of the pipe measures 12 meters with throw light on both inside and outside surfaces, followed by an 18-meter tube pressure test.
Stainless Steel Pipe Description
Straight Tube
| Grade | 304/409L/436L/439/430/441 |
| O.D | ⌀25mm-133mm |
| W.T | 0.6mm-2.0mm |
| Welding method | TIG Welding |
| Expansion test | 1.3 times of the pipe OD |
Bending test | Bend 180°,no cracks in the weld seam |
Holes Tube
| Grade | 304/409L/436L/439/430/441 |
| O.D | ⌀6mm-133mm |
| W.T | 0.5mm-3.0mm |
| Welding method | TIG Welding |
| Expansion test | 1.3 times of the pipe OD |
Bending test | Bend 180°,no cracks in the weld seam |
Bend Tube
| Grade | 304/409L/436L/439/430/441 |
| O.D | ⌀ 10mm - 70mm |
| W.T | 0.6mm - 1.5mm |
| Welding method | TIG Welding |
| Expansion test | 1.3 times of the pipe OD |
Bending test | Bend 180°,no cracks in the weld seam |
Vehicle Exhaust Assembly
| Grade | 304/409L/436L/439/430/441 |
| O.D | ⌀ 45mm - 100mm |
| W.T | 1.0 mm - 1.5mm |
| Welding method | Secondary bonding |
| Expansion test | 1.3 times of the pipe OD |
Bending test | Bend 180°,no cracks in the weld seam |
Stainless Steel Cyclone
| Grade | 304/409L/436L/439/430/441 |
| O.D | ⌀ 50mm - 133mm |
| W.T | 0.6 mm - 1.5mm |
| Welding method | TIG Welding |
| Expansion test | 1.3 times of the pipe OD |
Bending test | Bend 180°,no cracks in the weld seam |
Stainless Steel Welded Tube Standard
GB | JIS | ASTM | UNS | BSEN | ||
S35350 | 12Cr17Mn6Ni5N | 1Cr17Mn6Ni5N | SUS201 | 201 | S20100 | 1.4372 |
S35450 | 12Cr18Mn9NiSN | 1Cr18Mn8NiSN | SUS202 | 202 | S20200 | 1.4373 |
S30110 | 12Cr7Ni7 | 1Cr7Ni7 | SUS301 | 301 | S30100 | 1.4319 |
S30480 | 06Cr19Ni10 | 0Cr19Ni10 | SUS304 | 304 | S30400 | 1.4301 |
S30403 | 022Cr19Ni10 | 00Cr19Ni10 | SUS304L | 304L | S30403 | 1.4306 |
S30458 | 06Cr19Ni10N | 00Cr19Ni9N | SUS304N1 | 304N | S30451 | 1.4315 |
S30908 | 06Cr23Ni13 | 0Cr23Ni13 | SUS309S | 309S | S30908 | 1.4833 |
S31608 | 06Cr17Ni12Mo2 | 0Cr17Ni12Mo2 | SUS316 | 316 | S31600 | 1.4401 |
S31603 | 022Cr17Ni12Mo2 | 00Cr17Ni14Mo2 | SUS316L | 316L | S31603 | 1.4404 |
S31658 | 06Cr17Ni12Mo2N | 00Cr17Ni12Mo2N | SUS316N | 316N | S31651 | - |
S32168 | 06Cr1Ni11Ti | 0Cr18Ni10Ti | SUS321 | 321 | S40500 | 1.4541 |
S11348 | 06Cr13Al | 0Cr13Al | SUS405 | 405 | S40500 | 1.4002 |
S11163 | 022Cr11Tl | - | SUH409 | 409 | S40900 | 1.4512 |
S11203 | 022Cr12 | 00Cr12 | SUS410 | - | - | - |
S11710 | 10Cr17 | 1Cr17 | SUS430 | 430 | S43000 | 1.4016 |
S11790 | 10Cr17Mo | 1Cr17Mo | SUS434 | 434 | S41000 | 1.4113 |
S40310 | 12Cr12 | 1Cr12 | SUS403 | 403 | S40300 | - |
S41008 | 12Cr13 | 1Cr13 | SUS410 | 410 | S41000 | 1.4006 |
S42020 | 20Cr13 | 2Cr13 | SUS420J1 | 420 | S42000 | 1.4021 |
S44070 | 68Cr17 | 7Cr17 | SUS440A | 440A | S44002 | - |
Stainless Steel Tube Applications
Argon arc Welding & Plasma Welding

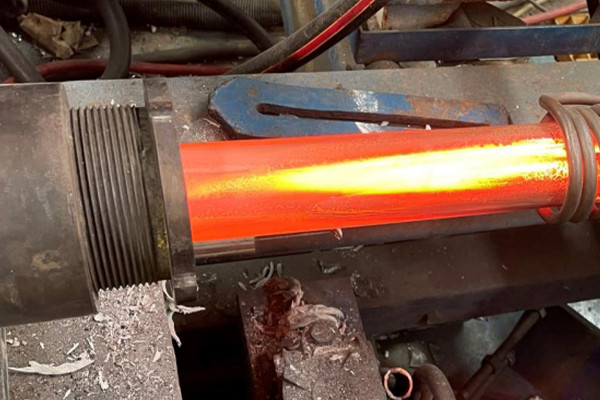

Stainless Steel Pipes Online Annealing
Surface Treatment of the Pipes
Stainless Steel Tube Applications
Stainless Steel Pipe Processing Services
· Bending · Welding · Flaring · Cutting · Punching · Polishing · Pickling
Inspect and repair the pipe one by one
Spectrum Testing

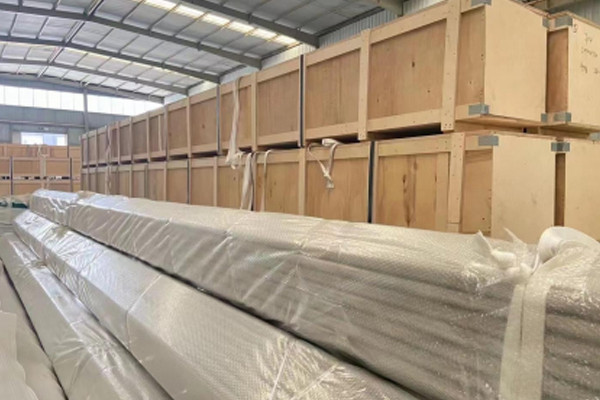

Packing And Shipping
