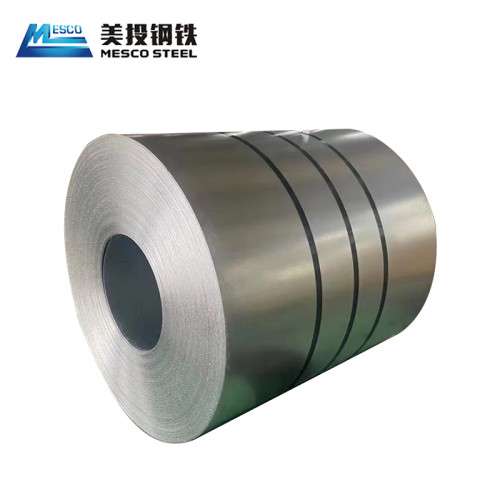

MESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheet

Can't find what you are looking for?providing the solution of the industrial raw materials based on the steel
Pre-Painted Galvanized steel,Aluminized steel,Galvanized steel,Zinc Aluminum Magnesium steel,Galvalume steel,Cold Rolled Steel
Contact us for free modeling
Just fill-in the form below and we will response to you within 12 hours.
*Email
Tel
*Title
*Content
Upload
  • Only supports .rar/.zip/.jpg/.png/.gif/.doc/.xls/.pdf, maximum 20MB.

MESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheet

MESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheet
MESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheetMESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheetMESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheetMESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheetMESCO zinc aluminum magnesium(Zn-Al-Mg) coated steel coil/sheet
CategoriesZn-Al-Mg Steel
BrandMESCO Steel Wholesaler
ModelZAM Steel
FACE BOOKMESCO STEEL
WhatsAPP+86 15134565556
Emailmesco@mescogroup.com.cn
FOB porttianjin port
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeApr 3,2025
Detail Information

MESCO Advantages

Top 3 ZAM steel suppliers in China.
First supplier that make ZM coating mass to 600g/㎡.
First enterprise that supplied ZAM steel pipe.
MESCO has rich project experience and can provide you with product recommendations.
MESCO has its own inventory of 7,000 to 12,000 tons per month, and the fastest delivery time is within 3 days!
We support deep processing: round pipes, square pipes, drilling, etc. The specifications are complete. Please feel free to contact me!

Zn-Al-Mg Steel Description

Item
Zn-Al-Mg Coated Steel Coil
Deliver port
Tianjin
Brand Name
MESCO STEEL
Application
Construction, light industry, automobile, etc
Delivery form
Steel Coil/Sheet
Thickness
0.2-8.0MM
Width
600-1500MM
Length
As clients' requests
Certificate
API, CE, ROHS, SNI, BIS, SASO, PVOC, SONCAP, SABS, sirm, tisi, KS, JIS, GS, ISO
Grade
DX51D-DX57D S220GD S250GD S550GD
Coating
ZM40-80-600g/㎡
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Content
Zn: 90% Al: 3%-11% Mg: 1.5%-3%
Surface Treatment
Chromated/Oiled
Delivery Time
3-15 days
Base material
Cold rolled steel
Coil Weight
5-10 MT
PAYMENT TERM
TT, LC, DA,DP, Western Union

Zn-Al-Mg Steel Performance Characteristics

Grade
YS
TS
Elongation after fracture of the following nominal thickness (mm): a80mm,%, ≥
MPA
MPA
0.4~0.5
>0.5~0.7
>0.7
DC51D+ZM
-
270~500
18
20
22
DC52D+ZM
140~300
270~420
22
24
26
DC53D+ZM
140~220
270~350
30
32
32
S250GD+ZM
250
330
15
17
19
S280GD+ZM
280
360
14
16
18
S320GD+ZM
320
390
13
15
17
S350GD+ZM
350
420
12
14
16
S390GD+ZM
390~580
460
12
14
16
S420GD+ZM
420~610
480
11
13
15
S450GD+ZM
450~640
510
10
12
14
S550GD+ZM
550
560
-
-
-
HC260LAD+ZM
260~330
350~430
22
24
26
HC340LAD+ZM
340~420
410~510
17
19
21
HC220YD+ZM
220~280
340~420
28
30
32
HCT590X+ZM
330~430
590
16
18
20

Product Characteristics of Zn-Al-Mg Steel

1、Excellent corrosion resistance
Zn-Al-Mg coatingsteel has better corrosion resistance. The increase of Al and Mg content in a certain range makes the corrosion resistance of Zn - Al-Mg coating steel sheet increase several times higher than that of Gl.
2、Good abrasion resistance
With low friction coefficient and stable friction characteristics, it is very favorable for punching. It can reduce the amount of wear on the coating, thereby reducing the part's pulling defects.
3、Good welding performance
The Zn-Al-Mg coating steel has good welding performance. The addition of magnesium can reduce the spatter of the weld attachment in the laser welding process and improve the welding performance.

Zn-Al-Mg Steel Plate Testing And Inspection

Salt Spray Test 275g/㎡
The coating weight on both sides: 275g/㎡
 Cut edge SST
Cyclic Corrosion Test (CCT)
CCT after drawing
Trimming Protection

Zn-Al-Mg Steel Products Show

posmac
magnelis steel
magnelis steel
magnelis steel
superdyma
superdyma
superdyma

Zn-Al-Mg Steel Processing Service

zam steel

Quality Certificate


SGS Test Report


Aapplication Scenario

zam steel
The Karawang 100 Megawatts Photovoltaic Project
Time and Place: 2022 in Indonesia
 Material: S350GD+ZM275/310 1.5/2.0MM
zam steel
Al Kharsaa Solar Photovoltaic Power Project
Time and Place: 2021 in Qatar
Material: S350/550GD ZM275/310/350 1.5/2.0/3.0MM
zm steel
200KM Highway Guardrail
Time and Place: 2022 in Ibagué,Colombia
 Material: S550GD+ZM310 2.5MM
zm steel
Livestock Farm Building Trusses
Time and Place: 2021 in Murun,Mongolia
 Material: S550GD+ZM275 2.0MM
azm steel
KAMAZ Automobile steel sheet for stamping
Time and Place: Long-term supply to Russia
 Material: DX53D+ZM275 1.0/1.5/2.0MM
azm steel
Spectrum Hardware
Time and Place: Long-term supply to Xiamen
 Material: DX51D+ZM80 0.6/0.8/1.0MM
superdyma steel
Modern granary
 Time and Place:2022 in Algeria
 Material: S350GD+ZM310 2.0/2.5/3.0MM
superdyma steel
TCL Air conditioner outdoor unit
Time and Place: Long-term supply to Guangdong
Material: DX51D+ZM275 0.8/1.0MM
